Worm Shafts for Industrial Automation & Reducers
Automation reducers and right-angle drives often put a premium on repeatable positioning, compact packaging and predictable maintenance.
Buyer decision

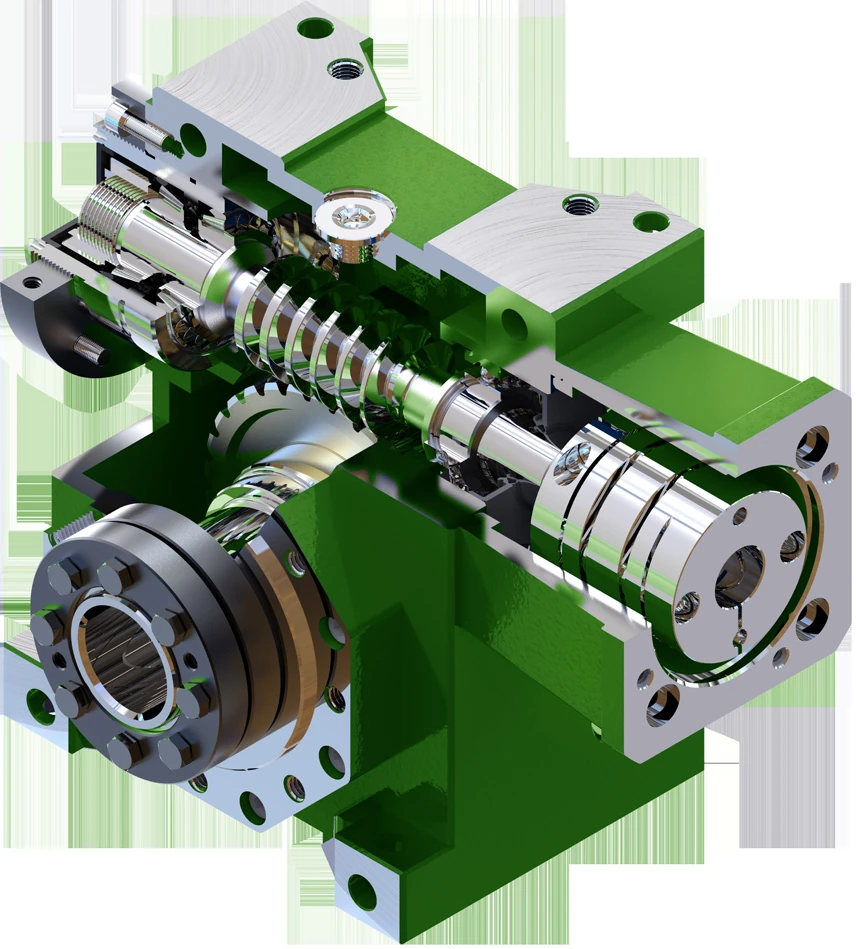

What changes the worm shaft specification here
The useful starting point is the operating duty, not a generic industry label. For this application, put extra attention on backlash/positioning target, input speed, ratio, duty cycle, mounting constraints and coupling arrangement.
For industrial automation & reducers, review those inputs together with the mating worm wheel, center distance and shaft interfaces. The approved drawing remains the controlling reference for manufactured geometry.
Application RFQ checklist
| Input | What to provide |
|---|---|
| Backlash/positioning target | State the actual value, condition or drawing reference for this project. |
| Input speed | State the actual value, condition or drawing reference for this project. |
| Ratio | State the actual value, condition or drawing reference for this project. |
| Duty cycle | State the actual value, condition or drawing reference for this project. |
| Mounting constraints and coupling arrangement | State the actual value, condition or drawing reference for this project. |
Product paths commonly considered
Ground or dual-lead where the drive design calls for adjustment; custom hobbed shafts for suitable duty. The final route depends on the complete mesh geometry, ordered material/treatment and inspection requirement.
For a industrial automation & reducers repair, include the old shaft and wheel together when the tooth data cannot be recovered reliably from the machine documentation.
How we move from application to part
Define the machine duty
Record the operating condition and failure/selection objective.
Identify the mesh
Confirm the mating wheel, ratio, center distance and known tooth data.
Lock shaft interfaces
Journals, shoulders, end features and mounting constraints come from the approved print or measured sample.
Choose a manufacturing route
Hobbing, grinding and treatment are selected for the actual specification, not as marketing defaults.
Quote and confirm
Quantity, documentation and delivery are agreed before production.
Frequently asked questions
Can you select a worm shaft from the application name alone?
No. Application context helps us ask the right questions, but the worm/wheel geometry and shaft interfaces still need to be defined.
Should I send the mating worm wheel?
Yes when replacing an unknown shaft or when backlash/contact is a concern. A matched review is safer than assuming a standard mesh.
Can you make a small sample quantity?
For industrial automation & reducers, 1–5 samples can be considered where the manufacturing route is suitable. A 1–2 piece order is also possible, normally at a higher unit cost.
Application detail
Turn positioning requirements into a controlled drive specification
In an automated reducer, a small dimensional change can show up as lost motion at the driven axis. Start by defining whether the machine needs simple speed reduction, repeatable indexing or an adjustable low-backlash mesh. Those are different duties even when the outside housing looks similar.
For service work, record backlash before disassembly, note the axial adjustment position if the unit uses a dual-lead arrangement, and inspect bearing condition. A new shaft cannot compensate for loose support or a damaged wheel.
What to record before the RFQ leaves your plant
| Field | Why it matters |
|---|---|
| Repeatability | State the required behavior at the output and whether motion reverses frequently. |
| Adjustment | Identify whether backlash is fixed by geometry or adjusted through axial worm position. |
| Motor/coupling | Give input speed, coupling/bore interface and any overhung or alignment constraint. |
| Thermal duty | Describe continuous/intermittent operation and lubricant/temperature conditions. |
| Service target | Clarify whether the request is a direct replacement, redesign or spare for a stable machine. |
Useful product routes from this application
For automation reducers, begin in the product catalogue with ground or dual-lead families when positioning and adjustment are important. If the current tooth data are incomplete, the replacement guide helps separate measurements from assumptions.
A new reducer program can use the selection guide to keep motor speed, ratio, wheel geometry, shaft support and backlash behavior in one review before the shaft drawing is released.
Quote from the real interfaces
Request a Quote / Send RFQ
Send the model or drawing reference, quantity, application and the geometry that controls fit and mesh. Unknown values can be identified for confirmation rather than guessed.
